Blue Giant Strongarm TL85 Vehicle Restraint | Prevents premature truck departure during loading and unloading.

The StrongArm™ TL85 hydraulic vehicle restraint keeps dock operations safe and secure during loading and unloading.

Blue Giant Vehicle Restraints Blue Giant Strongarm TL85 Vehicle Restraint
Blue Giant Strongarm TL85 Vehicle Restraint

The Blue Giant StrongArm™ TL85 hydraulic vehicle restraint keeps dock operations safe and secure during loading and unloading.

Trucks and trailers are held firmly in place by a high-visibility barrier-style restraint arm, and a restraining force of 14,545kgs prevents accidental separation from the loading dock during the cargo handling process.

The TL85 may be left engaged overnight to deter trailer theft.

Non-Impact Operation

  • ICC bars are secured via passive engagement, creating less wear and tear on the restraint components and consequently lowering maintenance requirements.
  • Internal automatic pressure switch maintains the arm in the locked position while in operation.
  • Compatible with air-ride suspension systems.
  • VersaLock™ securing technology allows the restraint arm to lock at any angle between 45 and 90 degrees.
  • Perfect for applications that involve a variety of truck configurations, including those with bent or damaged ICC bars.
  • Services trucks with ICC bars from 305mm to 660mm above ground.
  • Horizontal restraining range is up to 305mm beyond the face of the dock.
  • Should an obstacle prevent the restraint arm from properly parking, the arm will dislodge it.

Versatile Installation

The TL85 comes standard with a remote, wall-mounted powerpack, but is also available with a self-contained powerpack, to suit site conditions. May be wall or ground-mounted.

Intelligent Touch Controls

  • The Blue Genius™ Gold Series II Touch Control Panel features include an LCD menu screen, function buttons and a flat surface keypad with unique touch sensors.
  • Interior and exterior LED lights keep drivers and warehouse personnel advised of safety conditions.
  • Audible alarm built into the control panel alerts the dock attendant to potentially unsafe conditions, such as broken or missing ICC bars.
  • Audible touch buttons and keypad provide instant sound feedback to user input.

Recommended Applications

  • High-volume cargo handling locations
  • Places that serve a variety of truck configurations

Available Options

  • Self-contained power pack
  • Extension plates
  • Zinc finish for extension plates

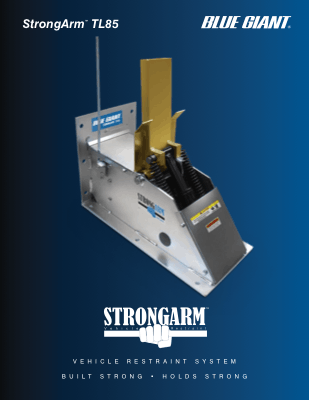

PDF Brochure Thumbnail

View Brochure
