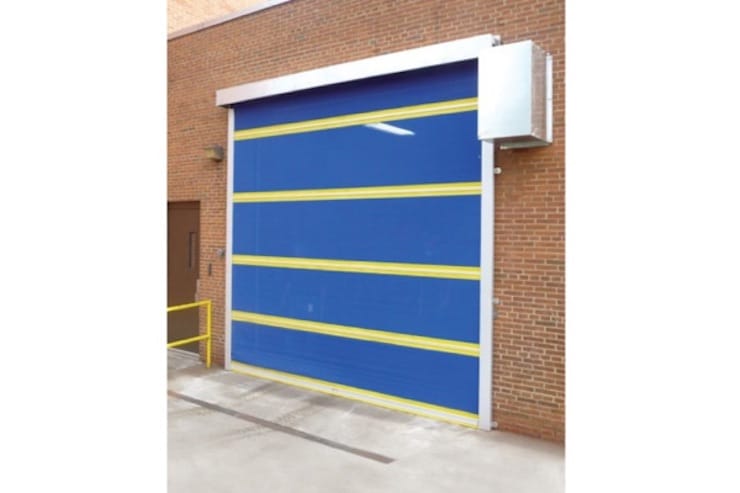

Blue Giant Bug Screen Doors create a comfortable work environment while cutting down on energy bills. Typical applications include loading bays, distribution centers, and warehouses.
By enabling a pest-free facility, Blue Giant bug screen doors can help food processing and pharmaceutical locations to meet FDA and AIB requirements.
Product Details
- Modular design: panels are interchangeable, enabling quick and easy repairs
- Extruded aluminum wind bars: up to 50% stronger than other stiffeners to combat high winds and negative pressure
- Breakaway bars: prevent the door from breaking if hit
- Extruded aluminum guide tracks: reduce friction and prevent aluminum dust.
- Available movement mechanisms: in-tube motorized, manual spring-loaded, external jackshaft, and manual chain hoist. Different door sizes and mounting options are available to suit site requirements.
BSD-100 Spring-Loaded Manual Push-Down
- Maximum door size: 3658mm wide by 3658mm high.
- Includes yellow pull down straps to bring the door up and down.
BSD-200 Chain Hoist Manual Activation
- Maximum door size: 4627mm wide by 4627mm high.
- Chain hoists are used to manually pull the bug screen door up and down, just like a traditional garage door.
BSD-300 In-Tube Motorized Bug Screen
- Maximum door size: 4627mm wide by 4627mm high.
- The in-tube motor moves the door at a rate of 305mm per second and can be cycled 8 to 10 times per hour.
- Includes an up/down constant contact rocker switch.
BSD-400 External Jackshaft Motorized Bug Screen
- Maximum door size: 4627mm wide by 4627mm high.
- The external jackshaft motor moves the door at a rate of 305mm to 610mm per second and can be cycled 10 to 15 times per hour.
- Includes a three-button station and photo eye.
Mounting Styles
- In-Jamb: Requires approximately 216mm headroom and 114mm of space on each side of the jamb
- Face of Wall: Use when no existing door is present – can be mounted inside or outside
- Inside Stand-Off: Mounts in front of an existing roll-up or sectional.
