Blue Giant BG100 Fixed Head Pad Dock Seal | Airtight protection.

For Climate-controlled operations such as frozen food, groceries, and pharmaceuticals.

Blue Giant Seals & Shelters Blue Giant BG100 Fixed Head Pad Dock Seal
Blue Giant BG100 Fixed Head Pad Dock Seal

The BG100 Fixed Head Pad Dock Seal is designed to suit door openings up to 2438mm x 2438mm to 2743mm x 2743mm.  The Fixed Head Pad Dock Seal provides airtight protection when servicing trailers of consistent height. When in use, the BG100 Fixed Head Pad Dock Seal enables an energy-efficient seal that keeps facilities free of airborne contaminants, pests, and inclement weather conditions.

Product Highlights

  • Two foam side pads and one foam head pad wrap around the trailer opening, eliminating the gap between the building and the trailer
  • Polyurethane foam compresses to conform to the trailers shape during use, and resumes its original size and shape upon completion
  • 18 (457mm) corner pleats
  • Double-stitching on all seams
  • Tapered at bottom of pads to eliminate bumper pinch
  • A wide range of durable fabrics is available to suit all application requirements

Recommended Applications

  • Companies and facilities with uniformly sized trailers, such as a truck fleet
  • Climate-controlled operations such as frozen food, groceries, and pharmaceuticals

Available Upgrades

  • Fabric rain shroud
  • Pressure-treated lumber
  • PVC drop curtain

Available Options

  • 18" (457 mm) head pad
  • 12" (305 mm) header drop curtain with Velcro
  • Header flaps across entire head pad
  • Bottom flaps on verticals
  • Full height yellow guide stripe

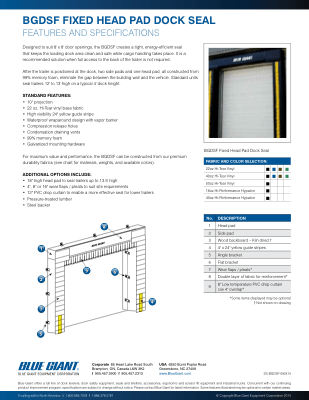

PDF Brochure Thumbnail

View Brochure
